1586106-3
Manufacturer:
TE Connectivity
Mfr.Part #:
1586106-3
Datasheet:
Description:

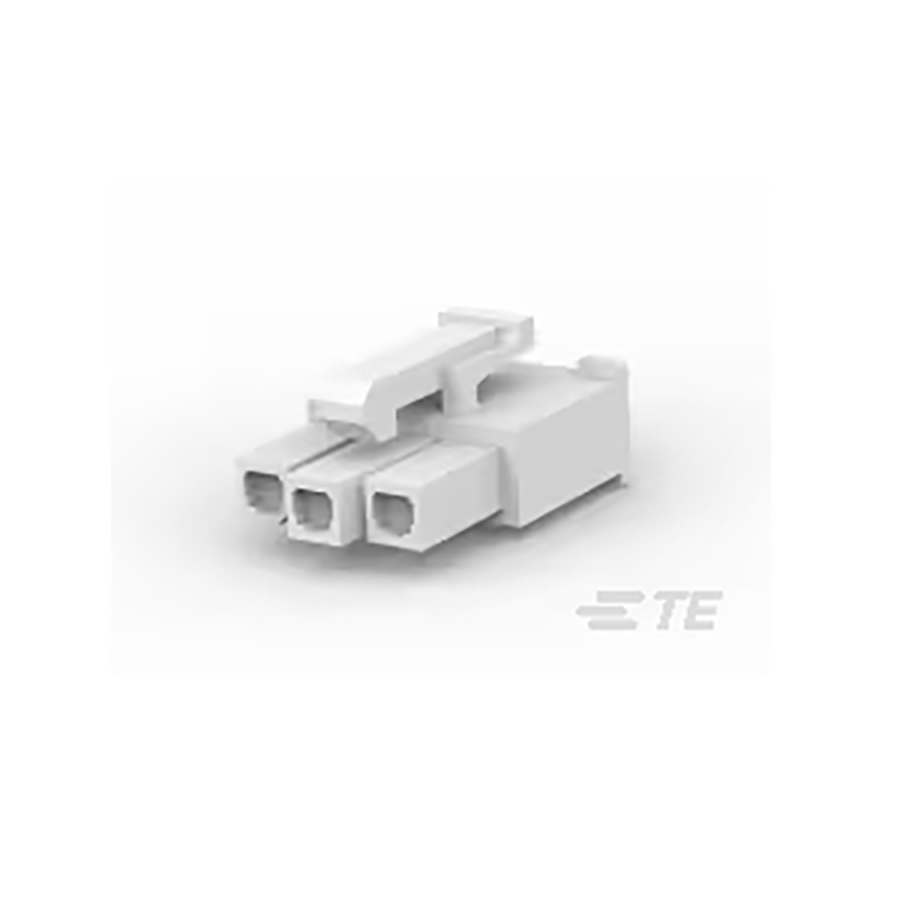

Headers and Wire Housings Cable, Free Hanging Socket Number of Positions:3 Pitch:4.2 mm
| Parameter | Value |
|---|---|
| Length | 13.7922 mm |
| Width | 20.5994 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 7.3914 mm |
| Packaging | Bulk |
| Voltage Rating | 600 V |
| Depth | 20.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Pitch | 4.2 mm |
| Current Rating | 9 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Number of Circuits | 3 |
| Orientation | Straight |
| Operating Supply Voltage | 600 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Natural |
| Gender | Receptacle |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Socket |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Row Spacing | 4.191 mm |
| Housing Material | Nylon |
| Wire/Cable Type | Discrete |
| Fastening Type | Latch |
| Connector System | Wire-to-Wire |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 600 V |
| Housing Color | White, Natural |
| Insulation Diameter | 3.0988 mm |
| VDE Tested | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
Stock: 28
Distributors
pcbx
pcbxUnit Price$0.27590
Ext.Price$0.27590
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.27590 | $0.27590 |
| 10 | $0.21926 | $2.19260 |
| 50 | $0.19104 | $9.55200 |
| 100 | $0.16645 | $16.64500 |
| 500 | $0.15278 | $76.39000 |
| 1000 | $0.14463 | $144.63000 |
